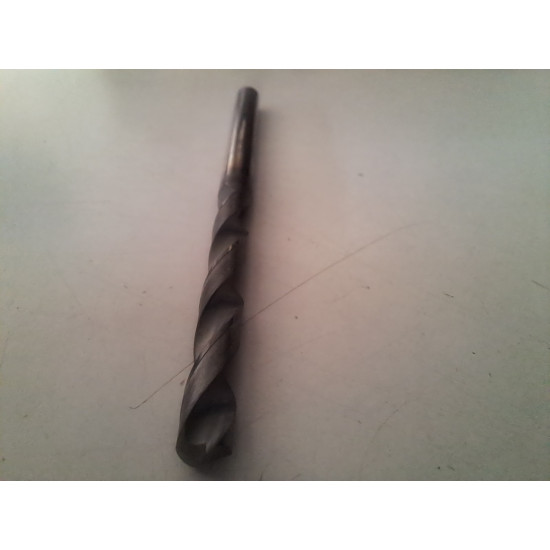

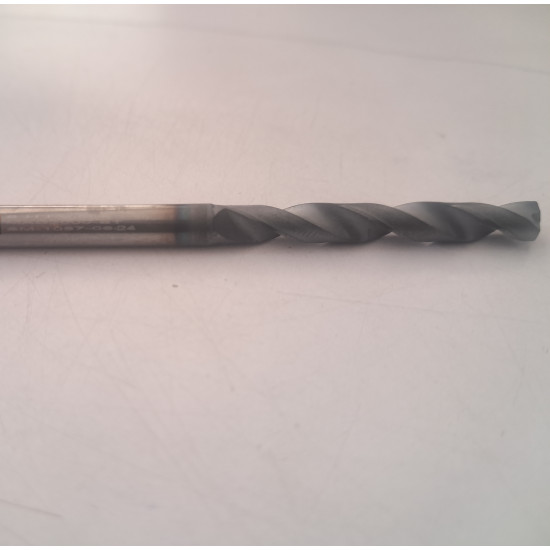

Solid Carbide Drill - Diameter 4.0 mm x 35mm Flute Length x 80 mm Over All Length x 6.00mm shank TiAlN Coated - Non Through Coolant

“SHIVMAC”    Make

Solid Carbide Drill -  Diameter 4.0 mm x 35mm Flute Length x 80 mm Over All Length x 6.00mm shank TiAlN Coated - Non Through Coolant

Model No. : SCD_4x35x80x6TiAlN

About The Drill  :

1.    High Performance Solid Carbide Drill  - Always One Step Ahead in competition.

2.    Coated with TiSiN Coating  - The latest in recent PVD Coating Technology.

3.    Universal Geometry for all types of Metal Application –An all round performing grade.

4.    Manufactured with Edge Corner Protection  -  No worry for early corner chip off.

5.    Helix Angle 30° - Most suitable for all types of Milling applications.

6.    Made from Ultrafine Grade of Solid Carbide Rods – K20

7.    Manufactured on Advanced & Latest 5 Axis CNC Tool & Cutter Grinding machine.

8.    Hardness :: 55 hrc.

9.    Cutting parameter : -RPM=3500, Feed=140 mm/min   OR  0.040 mm per revolution.

10. Diameter on Cutting Edges - Tolerance is maintained as per h7 ( ISO286-2)

11. Flute Length & Over all length Deviation is maintained between +/_ 2.00 mm

12. Diameter on Shank Length – Tolerance is maintained as per h6 ( ISO286-2)

13. Ovality & Taper on Shank length is maintained equal to or below than 0.002 mm

14. Tool measurement & analysis is randomly done on “Zoller” for 10% production qty.

15. Single piece plastic box packing with sponge along cutting edges to avoid transport breakage/chip off.

16. Un -Identical & Unique Tool number Laser marked on each tool for correct traceability.

Drawing of The Solid Carbide Drill :  à Model No. :  SCD_4x35x80x6TiAlN
